  • NATURAL DISTURBANCE BLOCK

    DESIGN WORKBOOK

    by

    Craig DeLong

    Regional Ecologist

    Ministry of Forests Prince George Region

    May 1999


    INTRODUCTION

    Public criticism of past practices and better understanding of natural systems has resulted in the emergence of new ideas about forest management (Maser 1988; Franklin 1989, Hansen et al. 1991). One such idea is that managed disturbances should be designed to approximate natural disturbance regimes. This suggestion is derived in part from emerging evidence that disturbance has a key ecological role in many forested ecosystems (Zackrisson 1977, Van Wagner 1978, Hessburg et al. 1994). The underlying assumption is that the biota of a forest is adapted to natural disturbances and thus could cope more easily with the ecological changes associated with timber harvest if the patterns created resemble those of natural disturbances (Hunter 1993, Swanson et al. 1993, Bunnell 1995). The Biodiversity Guidebook (1995) which outlines a process for meeting biodiversity objectives as required in the Forest Practices Code of British Columbia Act and Regulations is based on this approach.

    Natural disturbances maintain plant and animal diversity over time and space by maintaining structural complexity within stands and by influencing the size, distribution, edge characteristics, and dispersion of stands across the landscape (Zackrisson 1977, Hansen et al. 1991, Hessburg et al. 1994). The size, shape, and location of individual forest patches or stands profoundly affect landscape stability and productivity (Franklin and Forman 1987, Frank and McNaughton 1991). Legacies of natural disturbance such as old large diameter trees, snags and woody debris play a fundamental role in maintaining the long term ecological functioning of the ecosystem (Hansen et. al. 1991, Maser 1992, Franklin 1994, Ammaranthus 1994).

            The impacts of forest management appear now to have a greater influence on landscape pattern than those of natural disturbance agents (DeLong and Tanner 1996, Zackrisson 1977). Hence, there is a need to utilize information collected from studies of natural disturbance to assist forest managers in incorporating some design considerations into future harvest openings in order to reduce the functional dissimilarities between harvested and natural openings.

            This workbook is intended to provide some considerations for design of larger or aggregate harvest openings based on studies conducted within the Sub-boreal Spruce Zone. In the long-term, developing larger or aggregated harvest areas on a periodic basis will provide several benefits. They will help:

                maintain large patches of young, mid-seral and old forest through space and time, thereby reducing fragmentation and thus providing greater forest interior conditions;

                diminish the amount of permanent roads, with associated benefits to wildlife, the productive landbase, and water quality; and

                facilitate cost-effective timber harvesting.

    The design considerations are applicable to harvest openings within all natural disturbance types (NDT's) as set out in the Biodiversity Guidebook (British Columbia Ministry of Forests 1995) but have particular reference to those where stand replacement wildfire was common (i.e., NDT3).


    LANDSCAPE CONSIDERATIONS

            Before initiating the design of individual openings it is important to consider the pattern that currently exists in the landscape unit (LU) of interest. Based on the Biodiversity Guidelines this will determine the relative size of patches that are under or over represented on the landscape. In order to examine existing patch size according to the guidebook only recent (< 20 yrs old) openings, natural or managed, are included as it is these younger patches which determine future patch size distribution. This also reduces the effort required to determine existing patch size distribution.

            There are certain limitations of existing digital files that must be addressed before conducting an analysis of existing patch size distribution. Openings which differ in leading species but not age must be considered as one opening. Also, openings which are adjacent or in close proximity to one another should be considered one patch. Narrow strips of timber between blocks does not provide mature forest habitat and therefore should be considered part of an overall patch and be used to meet wildlife tree patch requirements. This also mimics conditions found in wildfires where areas can be separated from the main fire by strips of green forest but they are part of the same wildfire. The proximal distance used to join openings may vary between 100-500m depending on what is known or assumed about edge effects on organisms in the area. Previous analyses have used a proximity limit of 400m. Thus any openings which come within 400 m of each other are considered one patch and there is no limit to the number of openings which can be joined and considered one patch. Ocular decisions on which blocks to amalgamate using a map of blocks within a landscape unit is probably the most efficient method of decided which blocks to amalgamate. An automated GIS buffering function may be used to assist in the process of identifying potential blocks especially if there are a lot of potential polygons to be joined. Once decisions are made, areas of blocks to be amalgamated can be summed within the database generated from the original map. However, amalgamated blocks should eventually be joined in a GIS by digitizing "bridges" between the blocks at the closest common boundaries. Once all the openings have been joined, the total amount of harvested area and uncut forest within the new patch boundary should be calculated. If the uncut area exceeds the amount required to meet wildlife tree patch requirements it indicates harvest opportunities. If the uncut area is less than required it may be desirable to incorporate more uncut forest . Carrying out these procedures provides for the incorporation of wildlife tree patches into previously harvested areas thereby reducing the wildlife tree patch requirements in areas yet to be harvested (Tables 20a and 20b in the Biodiversity Guidebook). When using the tables, the percent of area available for harvest that has not met recommended wildlife tree retention objectives would be equal to the area of non amalgamated openings where nothing has been retained.

            Once harvest units have been amalgamated into patches an analysis of the amount of area in different patch sizes can proceed according to the patch size groupings for the appropriate NDT. The output of this analysis can be used to assess future opening size and opportunity for aggregating first pass dispersed blocks (i.e., further than 400 m apart). For example, a common scenario in landscape units within NDT3 (Douglas-fir restricted or absent) is that there is an overabundance of blocks in the 40-250 ha range and a lack of blocks in the > 250 ha range. This indicates a need to assess the feasibility of aggregating previously harvested patches. Once patch size targets are in place the following information will be useful in the design of individual or aggregate patches.



    SHAPE AND EDGE DESIGN

            The shape and edge characteristics of openings, particularly larger ones (e.g., > 60 ha), are critical in order to increase the functional edge for animals which utilize it (e.g. ungulates). There are 2 ways to increase edge. One is to increase the perimeter to area ratio by creating small blocks. Thus a number of smaller blocks will have more perimeter or edge than a larger one that covers the same total area assuming that the blocks are similar in shape. For this reason small openings have been previously supported by wildlife personnel for ungulate management. The other way to effectively increase edge is to increase the complexity of the shape of the opening. The natural and harvest openings depicted in Figure 1 are almost the same size ,328 ha and 318 ha respectively for the natural and harvest opening, but the perimeter (i.e., edge) of the natural opening is more than twice as long (26 715 m vs 10 111 m) as the simpler harvest opening. There are various methods of estimating shape complexity. One such measure is the shape index (Patton 1975) which is calculated using the following formula:

    or simplified as:



    where SI = shape index, P = perimeter (m), A = area (ha) < /SPAN >

              Shape index of wildfires has been found to increase with wildfire size (DeLong and Tanner 1996; Eberhardt and Woodward 1987). Table 1 shows targets for shape index for different size class openings based on wildfires examined by DeLong and Tanner (1996). These shape indices can be used as guidelines for opening design. After mapping and or digitization, the shape index of a proposed opening can be easily calculated using the formula given above.

              Riparian reserve edges and younger forest are obvious features which can be used to make the shape of an opening more complex. Others include non-forested units where no riparian reserve is required (e.g., avalanche tracks or alder swales), stands with low commercial value such as stands on rock outcrops or at high elevation, and stands of species not being utilized in the intended harvest (e.g., deciduous species). Many of these types of natural boundaries are also relatively windfirm (see Stathers et. al. 1994). To be practical, the majority of the boundaries chosen should be easy to locate on the ground. However, allowing some discrepancies between planned and final boundaries and utilizing global positioning systems (GPS) reduces the importance of this consideration.

              In future, fire spread models could be adapted in order to assist in opening design (e.g., Andison 1996). Andison's model already allows the user to specify a location and block size and using fire spread attributes (e.g., forest cover, topography), available in a GIS, design an opening which has the characteristics of a wildfire opening. The model also allows limits to be set with respect to forest age boundaries that the opening is not allowed to transcend (i.e., < age class 6).

              Once boundaries of an opening are finalized, edge feathering could be used during harvesting to increase the effective edge of the opening. Feathering along older multi-storied stand edges may also reduce blowdown (Stathers et al. 1994). One of the benefits of "mimicking natural disturbance" rather than defaulting to a maximum block size is the ability to harvest to windfirm boundaries. Thus, design of edges to reduce windthrow is an important consideration. A detailed examination of factors to consider to reduce windthrow can be found in the "Windthrow Handbook for British Columbia Forests" (Stathers et al. 1994). The basic design of the block should attempt to reduce fetch to non windfirm boundaries. Recent data from the Opax Silviculture Systems trials near Kamloops and data from a study of windthrow in wildlife tree patches (DeLong unpublished data) indicate that windthrow increases significantly where the fetch is >150m in the direction of prevailing winds. A basic block shape which should reduce windthrow resembles a silhouette of the crown of a spruce tree (Figure 2). The wide base of this shape should be anchored at the windward end of the block by a windfirm edge and stepped down into the main direction of wind (e.g., SW to NE). Table 2 highlights some important things to consider when choosing windfirm edges.



    WILDLIFE TREE PATCHES AND RIPARIAN RESERVES

              Patches of mature trees left in an opening are likely important for the reestablishment or maintenance of a variety of organisms. The usefulness of island remnants as wildlife habitat was demonstrated by Gasaway and DuBois (1985) in a study of the ecological impacts of large fires on moose. They found that 67% of the moose observed within a fire perimeter were located in unburned islands which covered only 15% of the total fire area. Bird studies comparing a clearcut without patches, a clearcut with patches, and uncut forest found that relative abundance was highest in patches within the clearcut and that some species such as woodpeckers and nuthatches were found in the clearcut with patches but not the clearcut without patches (Gyug, unpublished data). A recent study by Seip (1997) also concluded that leaving wildlife tree patches within clearcuts benefits many forest bird species. Island remnants may also act as biological refugia for certain organisms. Hypogeous fungi have been demonstrated to be more abundant in remnant Douglas-fir stands than in the surrounding young forest (Ammaranthus 1994).

              Guidance for leaving wildlife tree patches is provided in the Biodiversity Guidebook. The discussion contained here will be based on studies of 'island remnants' left in wildfires (DeLong and Tanner 1996) and will use this as a basis for providing recommendations as to the size class distribution and landscape placement of wildlife tree patches.

              It is important that all landscape positions be represented when designing wildlife tree patches. Current research on bird use of remnants indicates that lodgepole pine trees are the preferred nesting site for some woodpeckers (Ken Parker, pers. comm. 1997). This would argue against having most of the wildlife tree patch requirement made up of riparian or wetland areas which tend to be dominated by hybrid white spruce or black spruce. In addition, the study conducted by DeLong and Tanner (1996) found that wildfire remnants were as common on flat sites dominated by lodgepole pine as any other landscape position.

              Two other relationships, from the studies of Eberhardt and Woodward (1987) and DeLong and Tanner (1996), relate to amount and size of remnants. As wildfire size increases so does the proportional area and maximum size of remnants (Figure 3 & Table 3). It would seem ecologically prudent to increase the proportional amount of wildlife tree patch area when designing larger (i.e., > 500 ha) openings. Table 3 shows the distribution of sizes of remnants within different size class wildfires. In wildfires < 1000 ha all remnants are less than 10 ha and about half of them are 2 ha or less. In wildfires > 1000 ha remnants may be over 50 ha in size and only 20% are 2 ha or less. Larger reserves (i.e., > 10 ha) should be a consideration if designing blocks greater that 500 ha. If such a block involves cutting reserves between previously harvested blocks larger reserves could be left along previously harvested block edges that have demonstrated windfirmness.

              The effects of wildfire on remnants are variable. Some remnants completely escape burning while in others light under burning consumes a portion of the humus layer and scars trees but leaves most trees intact. In some, mainly those dominated by Douglas-fir, many of the trees have been killed leaving only scattered survivors. These variable effects can also be achieved within wildlife tree patches by adopting variable retention strategies. This could be particularly effective in stands dominated by Douglas-fir which are conducive to various partial cutting techniques. If partial cutting is done it is important to ensure care is taken to reduce damage to the root systems of leave trees by logging on a snow pack or restricting traffic around and within the partially harvested area. No mechanical site preparation should occur within these areas, however broadcast burning may be an option if Douglas-fir is the leave species. Under guidelines outlined in the Biodiversity Guidebook, the area that will be applied to wildlife tree patch requirements can be calculated using the formula:

                                                  AWT = BAR/BAT * AP

    where AWT = area applied to wildlife tree patch requirement, BAR = basal area retained, BAT = total basal area of patch prior to harvest, and AP = area of patch.

              Windfirmness is an obvious consideration in the design and placement of wildlife tree patches. The same factors which are used to choose windfirm edges can be used to select the most windfirm remnants (Table 2). In addition, some previous work by Steventon et al. (unpublished data) indicates that circular shapes are best. Other work done by DeLong (unpublished data, FRBC Project OP96060-RE ) indicates that windthrow may be reduced by:

                designing reserves larger than 5 ha,

                not locating reserves in crest and lower to toe slope positions, and

                orienting the long axis of oblong shaped remnants SW to NE (i.e., in the direction of major winds).

    If other considerations dictate that reserves be less than 5 ha then windthrow may be reduced by:

                choosing reserves on sites where the combined depth of humus and organic soil is less than 7 cm,

                choosing reserves on sties where effective rooting depth is >15 cm, and

                locating reserves less than 150m from the opening edge in the direction of prevailing winds.

    If the basic shape discussed in the Shape and Edge Design Section is used remnants could be hidden on the lee side of the lobes (Figure 2).


    HARVESTING

              Although this workbook is intended to cover the design aspects of natural disturbance blocks the harvesting phase is critical to achieving overall objectives.   Logging should generally progress from an identified windfirm boundary into the direction of major winds (i.e., from NE to SW). When large openings are being harvested over a number of years, non windfirm portions should be logged as early as possible. If low to moderate levels of windthrow occur the edge should be left. However, if high levels of windthrow do occur, the boundaries could be adjusted so that the edge can be cleaned up and brought to a more windfirm position before the opening is completed. This may necessitate adjustments on other boundaries in order to meet the target block size. Feathering, topping and pruning could also be used along non windfirm edges. This may help buffer the edge just as snags left by wildfire appear to buffer wildfire edges. Low ground pressure equipment should always be utilized during the harvesting of non windfirm edges to reduce impact on the supporting roots of the leave trees. Other windthrow management techniques are discussed in Chapter 6 of Stathers et. al. (1994) and this reference should be used when developing the harvesting prescription.



    SUMMARY OF PROCEDURES

    LANDSCAPE

    1)    Conduct analysis of existing patch size in L.U. using existing criteria.

    2)    Determine level of aggregation or new large blocks required to meet desired patch size distribution for NDT.

    3)    Generate map of L.U. showing a minimum of; existing blocks, and mature and old forest, based on definitions contained in Biodiversity Guidebook.

    4)    Identify potential areas for aggregate blocks using following criteria.

                choose a group of recent blocks as older blocks (i.e., > 15 years old ) have already imprinted themselves on the landscape

                choose blocks in close proximity to one another (i.e., 500-2000m)

                aggregate blocks such that long axis is aligned with major winds (i.e., SW to NE)

                locate a potential anchor block at windward end with known windfirm edge (i.e., block > 3 years old with negligible windthrow)

    BLOCK DESIGN

    1)    Map outline of block (aggregate or new) using following criteria

                attempt to follow natural boundaries such as young forest edge, wetland complexes, riparian areas and avalanche tracks

                use windfirm edge criteria to choose other boundaries (Table 2)

                create shape that will reduce fetch to non-windfirm edges (e.g., Figure 2)

    2)    Refine edges using air photos

                using relative winfirmness criteria adjust and refine edges

                make any straight edges more irregular while avoiding formation of non windfirm peninsulas

    3)    Test block against criteria and finalize design

                finalize map of block and generate area and perimeter

                ensure area is under maximum area specified and shape index is within suggested limits (Table 1)

                adjust boundaries as required

    WILDLIFE TREE PATCHES

    1)    Mark out all required riparian reserves, wetland, and lake reserves

                map out on air photos or detailed map

                calculate areas

    2)    Determine relative position and amount of area for remainder of required wildlife tree patches

                calculate area required beyond reserves

                determine approximate location to meet distance to cover guidelines

                calculate mean size based on area and total number required

    3)    Map out larger reserves (>1 ha) and management regime for each

                map outline on air photos taking into consideration goals of ecosystem representation, windfirmness, and variability in size

                assign no harvest or partial harvest to each

                recalculate area based on reduction for any partial harvest reserves

                add more as required to meet required level of retention

    4)    Determine approximate location of smaller reserves

                outline general area where smaller reserve should be

                provide some guidance to operator as to desired characteristics of reserve





    REFERENCES

    Amaranthus, M., Trappe, J.M., Badnar, L. and Archer, D. 1994. Hypogeous fungal production in mature Douglas-fir fragments and surrounding plantations and its relation to coarse woody debris and animal mycophagy. Can. J. For. Res. 24:2157-2165.

    Andison, D. 1996. Managing for landscape patterns in the sub-boreal forests of British Columbia. Phd Thesis, Univ. of B.C. 197 pp.

    Bunnell, F.L. 1995. Forest-dwelling vertebrate faunas and natural fire regimes in British Columbia. Cons. Biol. 9:636-644.

    DeLong, S.C. and Tanner, D. 1996. Managing the pattern of forest harvest: lessons from wildfire. Biod. and Cons. 5:1191-1205.

    Eberhart, K.E. and Woodward, P.M. 1987. Distribution of residual vegetation associated with large fires in Alberta. Can. J. For. Res. 17:1207-1212.

    Frank, D.A. and McNaughton, S.J. 1991. Stability increases with diversity in plant communities: empirical evidence from the 1988 Yellowstone drought. Oikos 62:360-362.

    Franklin, J.F. 1989. Towards a new forestry. Am. For. November/December:37-44.

    Franklin, J.F. 1994. Ecoystem management: An overview.? In Ecosystem Management: Applications for sustainable forest and wildlife resources. March 3-4, 1994. Stevens Point, WI

    Franklin, J.F. and Forman, R.T.T. 1987. Creating landscape patterns by forest cutting: ecological consequences and principles. J. Land. Ecol. 1, 5-18.

    Gasaway, W.C. and DuBois, S.D. 1985. Initial response of moose to a wildfire in interior Alaska. Can. Field-Nat. 99:135-140.

    Hansen, A.J., Spies, T.A., Swanson, F.J. and Ohmann, J.F. 1991. Conserving biodiversity in managed forests: lessons from natural forests. Biosci. 41:382-392.

    Hessburg, P.F., Mitchell, R.G., and Filip, G.M. 1994. Historical and current roles of insects and pathogens in eastern Oregon and Washington forested landscapes. Oregon: USDA For. Serv., Gen. Tech. Rep., PNW-GTR-327.

    Hunter, M.L., Jr. 1993. Natural fire regimes as spatial models for managing boreal forests. Biol. Conserv. 65:115-120.

    Maser, C. 1988. The Redesigned Forest. San Pedro: R. & E. Miles.

    Seip, D., and Parker, K. 1997. Use of wildlife tree patches by forest birds in the Sub-boreal Spruce (SBS) zone. Prince George Forest Region Research Note #PG-08.

    Stathers, R.J., Rollerson, T.P., and Mitchell, S.J. 1994. Windthrow handbook for British Columbia forests. Victoria, B.C: B.C. Min. For., Research Working Paper, 9401.

    Swanson, F.J., Jones, J.A., Wallin, D.O., and Cissel, J.H. 1993. Natural variability - Implications for Ecosystem Management. In Jensen, M.E. and Bourgeron, P.S., eds. Eastside Forest Ecosystem Health Assessment. Volume 2: Ecosystem management: principles and applications. pp. 89-104. Oregon:USDA For. Serv., Pacific Northwest Research Station.

    Van Wagner, C.E. 1978. Age-class distribution and the forest fire cycle. Can. J. For. Res. 8:220-7.

    Zackrisson, O. 1977. Influence of forest fires on the North Swedish boreal forest. Oikos 29:22-32.


    Table 1.  Recommended shape index for different size openings.

    Opening Size (ha)

    Shape Index Target

    50 - 100 ha

    1.5 - 2.5

    100 - 500 ha

    2 - 3.5

    >500 ha

    > 2.5



    Table 2. Windthrow hazard evaluation using identifiable features from maps,
    air photos and field reconnaissance.

    Source of Interpretation/ Factors

    High Hazard

    Moderate Hazard

    Lower Hazard

    Air Photos/Maps

    Stand Evenness/Density

    Stand Composition

    Topographic Exposure

    Terrain

    Evidence of Previous Windthrow

    Age Since Disturbance

    uneven/open

    pure spruce

    crests, saddles, narrow valleys parallel to max. wind, lee slopes of hills (see Stathers et. al. 1994)

    shallow to bedrock or organic

    moderate to extensive

    < 5 years or > 100

    uneven/dense

    even/open

    mixed stands, pine, subalpine fir

    mid slope edges on windward side of hills or parallel to wind direction

    lacustrine, fluvial (wetter sites), compact till

    minor

    5-10 years or 50-100 years

    even/dense

    Douglas-fir, deciduous

    draws running perpendicular to max. winds

    till, colluvial, fluvial (moist to dry sties)

    none

    10-50  years

    Field Reconnaissance

    Soils

    root restricting layer within 40 cm?, humus depth >8 cm, saturated soils in late spring or summer, poorly drained

    root restricting layer 40-80 cm deep, effective rooting depth <40 cm, imperfectly to moderately well drained

    root restricting layer >80 cm, effective rooting depth >40 cm, well drained

    Trees

    dominant stems with low taper and no butt flare

    dominant stems with moderate taper and butt flare

    dominant stems with high taper and large butt flare

    Crowns

    large dense crowns

    moderately dense crowns

    small open crowns

    Root Rot

    many trees affected

    few trees affected

    no trees affected





    Table 3 Average and range in proportion of area of island remnants by size class of

     remnant for wildfires < 1000 ha and > 1000 ha.



    Fire

    Size

    (ha)



    % of total area in island remnants by size class (ha) of remnant

    <1

    1-2

    2-5

    5-10

    10-20

    20-50

    >50

    <1000

    n=4

    28

    (17-46)

    21

    (12-35)

    32

    (27-40)

    17

    (0-44)

    >1000

    n=5

    6

    (2-11)

    11

    (6-20)

    20

    (11-32)

    11

    (2-17)

    17

    (8-29)

    27

    (10-43)

    8

    (0-32)

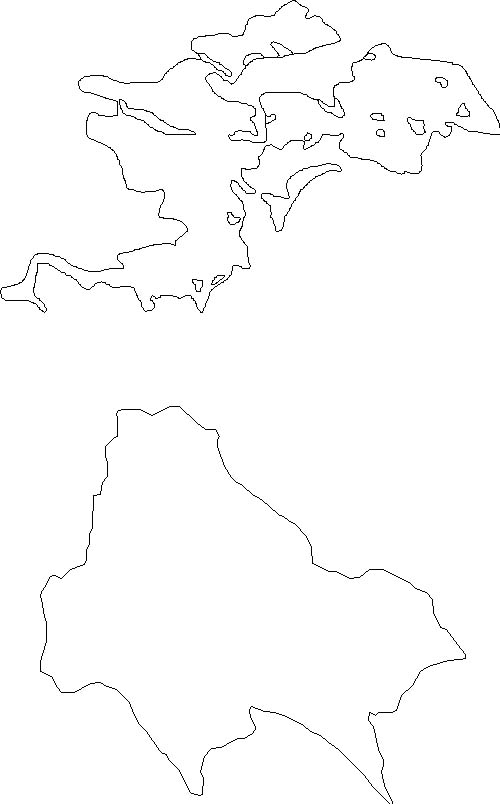

    Figure 1.           Comparison of wildfire (top) with harvest block showing difference in shape.

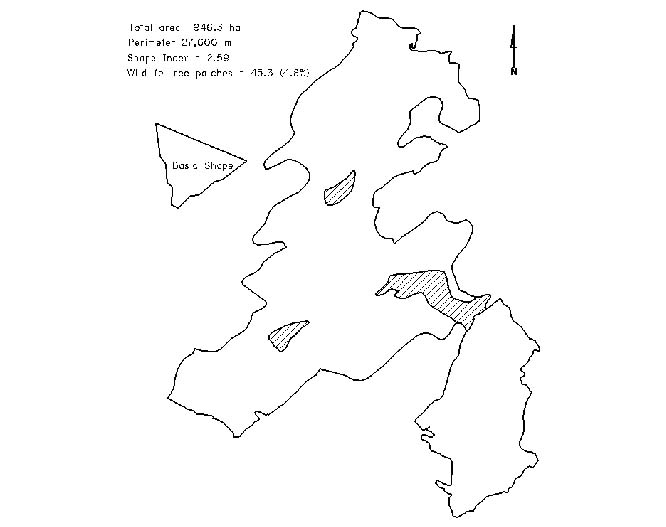

    Figure 2.           Map of amalgamated block showing application of basic windfirm shape. Hatched areas are large wildlife tree patches.

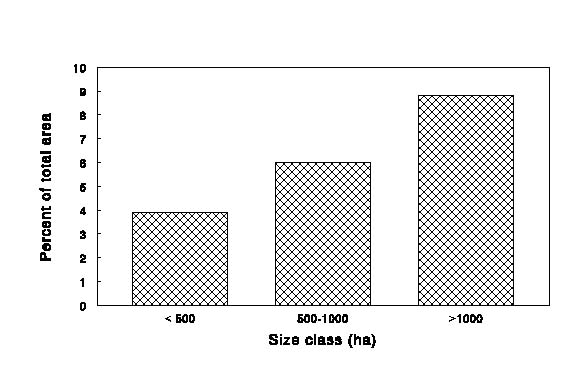

    Figure 3.           Percent of total area of wildfire occupied by island remnants by size class of wildfire.
